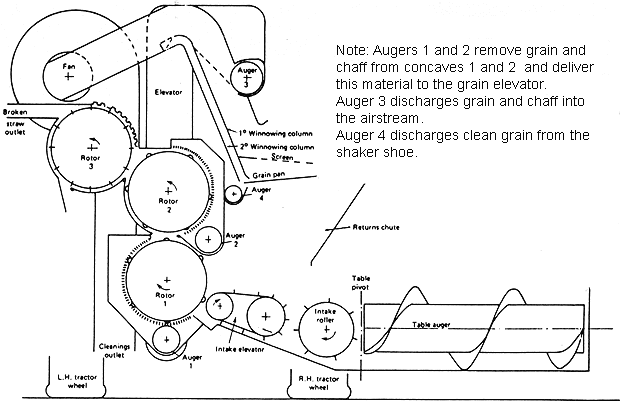

The working principles
of the whole crop harvester can be seen below.
The straw is broken during the 360 degrees run over the special
concaves for rotor 1 and 2 where also the grain seperation takes
place. |
The straw breaking
process is completed in the special third rotor fitted with
a very aggressive concave. |
